Phil Meyers Gr2 16v Rally Car

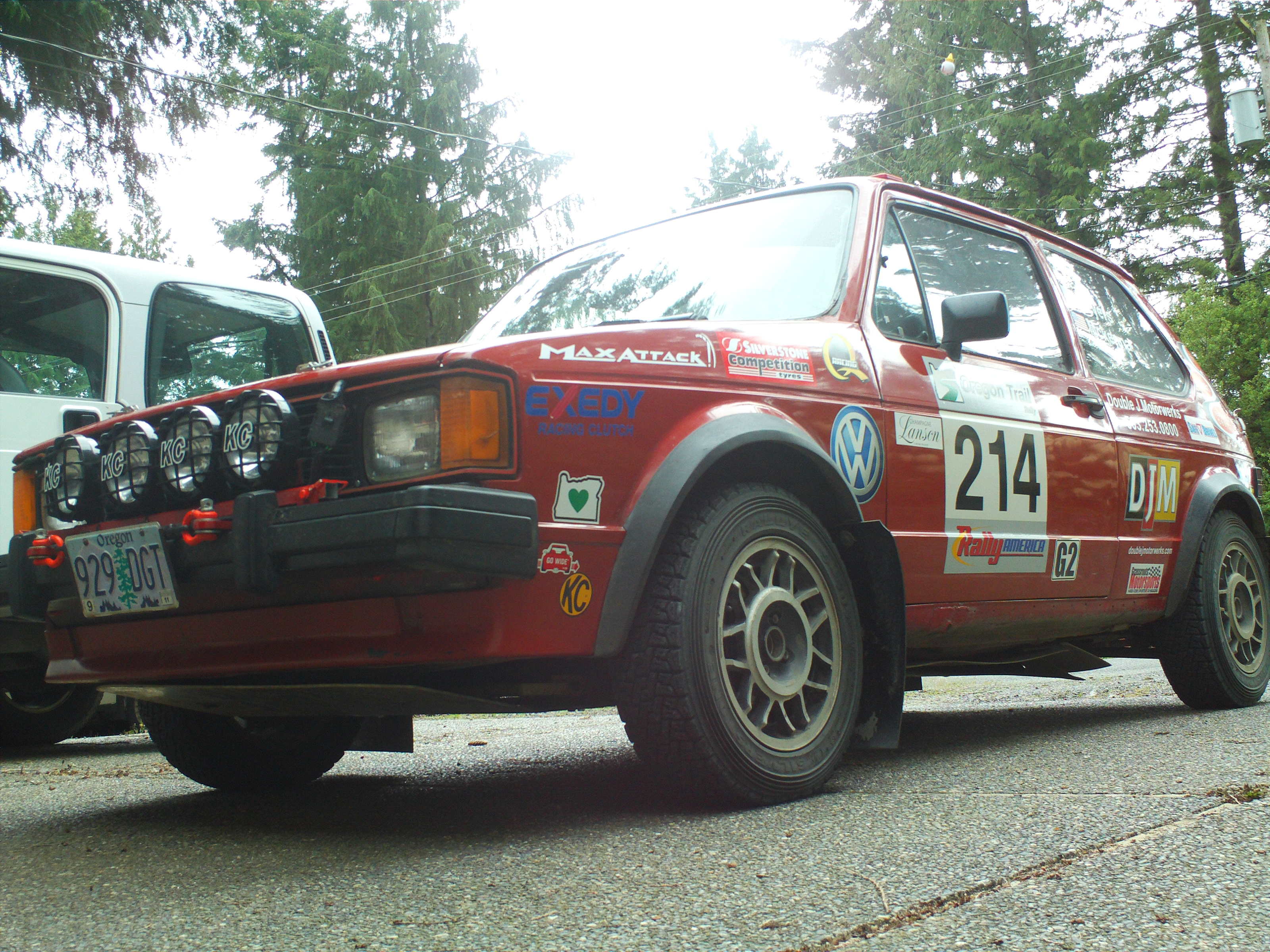

Phil contacted me in between events to do some tuning on his Gr2 Rally Rabbit. He chose to take on the challenges of a first time Megasquirt isntallation and pulled it off nearly flawlessly! He had a small issue with the origional board he had aquired for the project and was forced to order a new board only 2 weeks before the first event. Phil took on the task of assembling the board as well and once again completed it without issue. He brought the car up to me and we got to work, it ran just well enough at that point to get it on/off the trailer. After a few hours of street tuning the car was running incredibly well and since then he has had no engine issues to speak of. I had a few minutes to take some snapshots of the car so I took full advantage.

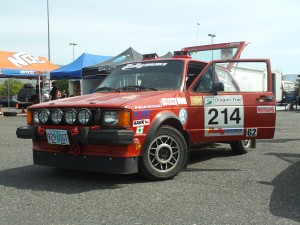

Here is the car at it’s second event after the EFI conversion, Oregon Trail ’10
Full Spec List:
Car specs:

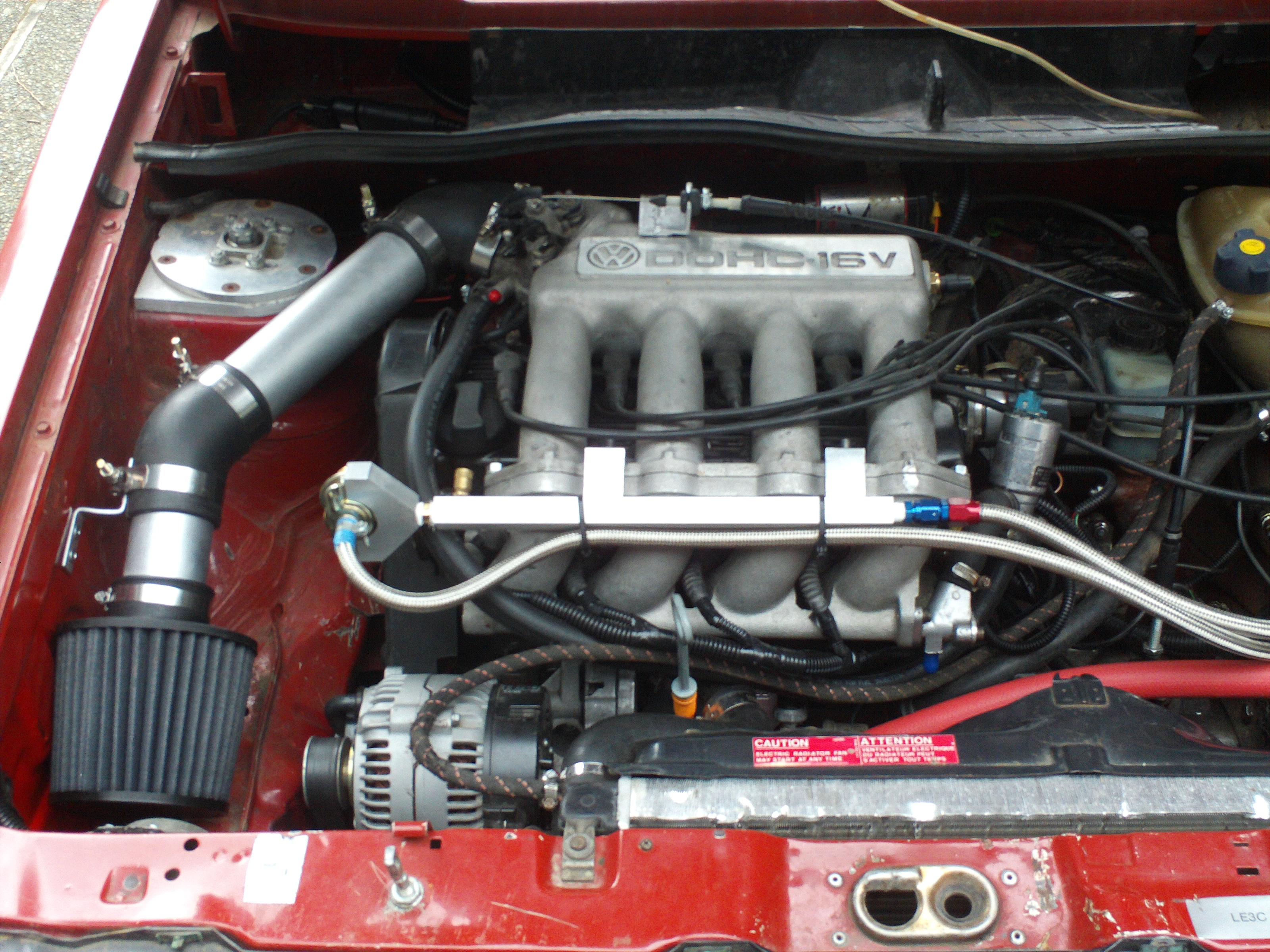

Engine:
VW 16V 2.0l 9A
Delta cams intake sport cam
Ford Motorsports Racing 30# multiport injectors
Megasquirt I v3.0 ECU
Hall trigger, direct coil control
Mallory Hyfire 6A CDI ignition box
MSD Hi-vibration CDI ignition coil
Innovate Motorsports LC-1 Wideband controller and gauge
Transmission:
VW 4k020
Kaaz LSD
Suspension:
Hot bits coil overs, non-adjustable
Custom bumpsteer correction
VW Racing rear beam re-enforcement
Burmeister upper strut plates
Prothane Urethane bushings
Tyres:
Silverstone S505 gravel tyres
14″ VW “Snowflakes”
Brakes:
MK3 Front rotors/calipers
MK3 Rear rotors/calipers
Hawk HP Plus brake pads
Empi brake basis adjuster
Misc:
OMP FIA homologated racing seats
G-force 6 point harnesses
Peltor FMT120 Rally intercom
Custom 8 pt roll cage by Racetech Fab (http://www.racetechfab.com/)

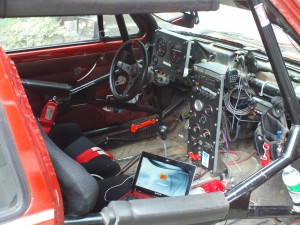

Custom VDO gauge assortment and panels
Optima Yellow top battery
Summit Racing battery relocation kit

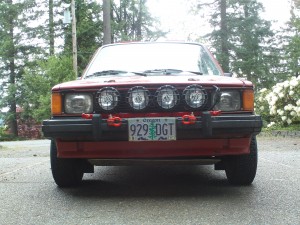

KC Hi Lites driving lights (4)
Custom 3/16″ T5051 aluminum skid plate
Custom 3/8″ T6061 aluminum front chassis re-enforcement
Custom 1.5″ steel lower chassis brace
Custom front and rear tow points
Custom wiring harness
